——Types Of Solar Panels——

60-Cell Solar Panels:

The standard solar panel size, the 60-cell is structured as a 6×10 grid and measures 3.25 feet by 5.5 feet.

 72-Cell Solar Panels:

The average 72-cell solar panel size measures 3.25 feet by 6.42 feet and is laid out as a 6 x 12 grid, making them almost a foot taller than the 60-cell standard size panels. Given their large physical size, 72-cell solar panels may be awkward to carry, which is why two people are often required for installation.

 96-Cell Solar Panels:

The 96-cell panel possesses an 8 x 12 grid structure that measures 41.5 inches by 62.6 inches.

Photovoltaic (PV) panels Technical Specifications

These are the black rectangular panels, usually installed in an array on the roof or on a stand, with maximum exposure to sunlight.

• PV panels receive radiation energy and convert it to direct current (DC) electricity. The output electricity is influenced by temperature, the amount of sunlight, reflection from the panels, dirt on the panels, etc.

• The electricity from the panels is in a rough form, and will very quickly ruin a battery if connected directly.

• They usually have a long life expectancy, commonly with more than 80% output after 20 years.

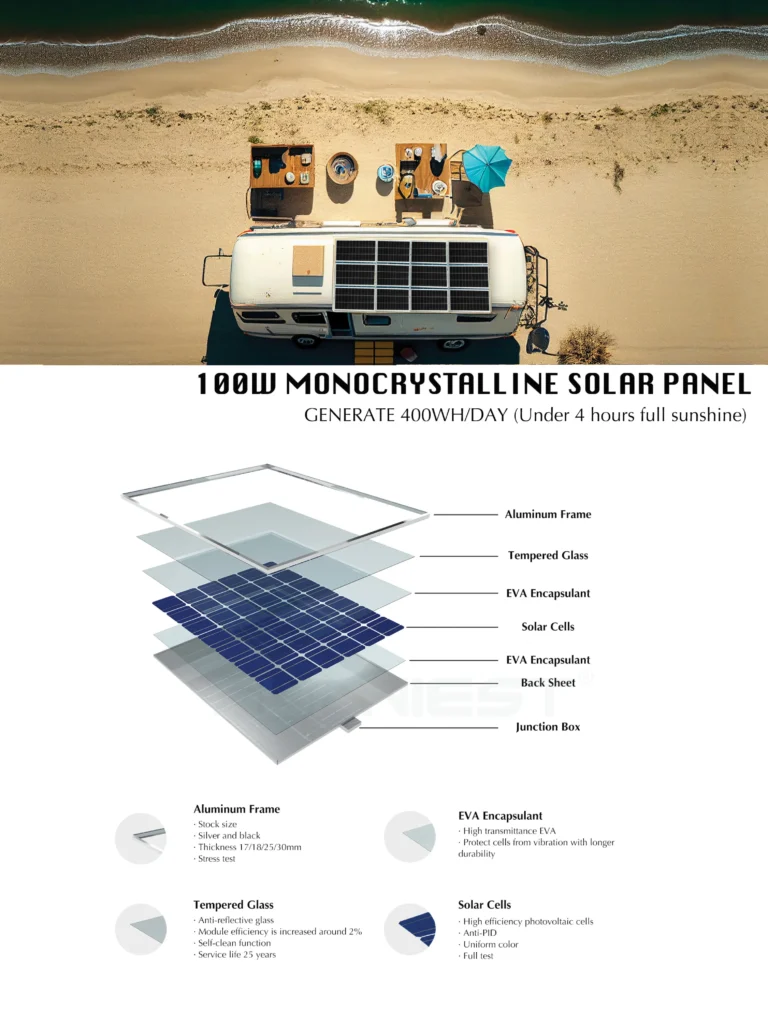

• Available in monocrystalline and polycrystalline. Polycrystalline is usually slightly cheaper, with a slightly shorter life expectancy.

• Prices are usually compared in Rand per Watt.

• The amount and configuration of the panels depending on the amount of Watts and Volts necessary, and if the energy has to be stored for later use or immediate consumption.

Electrical Specifications :

450W A Grade Mono 9BB Solar Panel

• Maximum efficiency: 20.7%

• Maximum power (Pmax): 450W

• Maximum power voltage (Vmp): 41.39V

• Maximum power current (Imp): 10.88A

• Open circuit voltage (Voc): 50.1V

• Short circuit current (Isc): 11.48A

• Maximum system voltage: 1500VDC(IEC)

• Maximum series fuse rating: 20A

450W A Grade Mono 9BB Solar Panel

• Cell size: 166 x 83mm

• Cell type: A-grade monocrystalline solar cell

• Number of cells: 144(6 x 24)

• Weight: 23.5kg

• Dimensions: 2094 x 1038 x 35mm

• Max load: 5400 Pascal

• Junction box: IP68 rated

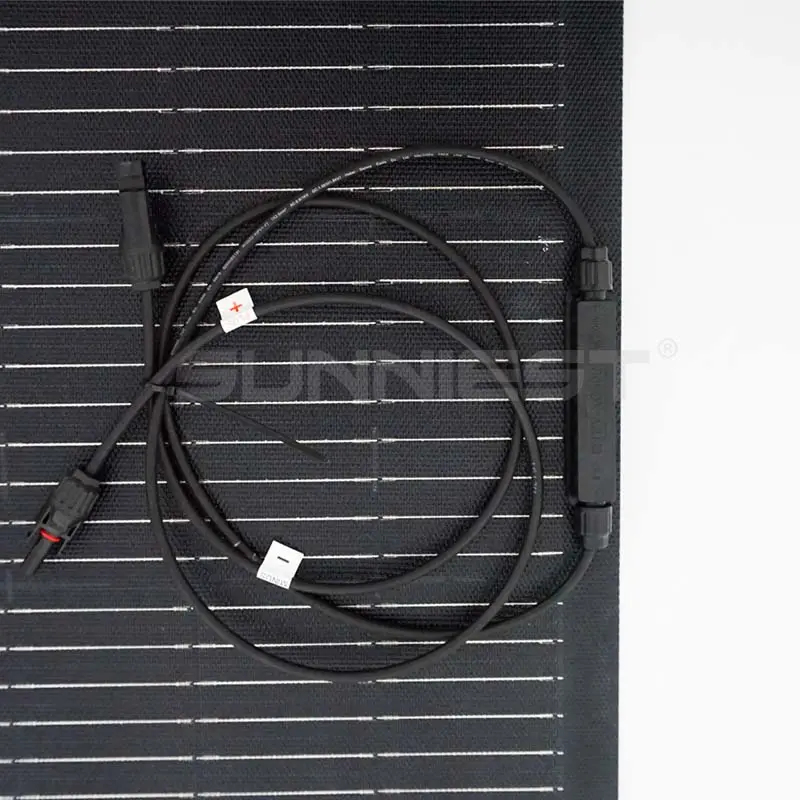

• Connector: MC4

• Cables: Photovoltaic technology cable 4.0 m m2, 900mm

2. 550W A Grade Mono 11BB Solar Panel

• Maximum efficiency: 21.3%

• Maximum power (Pmax): 550W

• Maximum power voltage (Vmp): 40.99V

• Maximum power current (Imp): 13.42A

• Open circuit voltage (Voc): 49.65V

• Short circuit current (Isc): 14.13A

• Maximum system voltage: 1500VDC(IEC)

• Maximum series fuse rating: 20A

550W A Grade Mono 11BB Solar Panel

• Cell size: 182 x 91mm

• Cell type: A-grade monocrystalline solar cell

• Number of cells: 144(6 x 24)

• Weight: 28kg

• Dimensions: 2278 x 1133 x 35mm

• Max load: 5400 Pascal

• Wind load: 2400 Pascal

• Junction box: IP68 rated

• Connector: MC4

• Cables: Photovoltaic technology cable 4.0 m m2, 900mm

• Max seriers fuse rating : 25A
