1.1.6. LED 2by2 and 4by1 Regular Panel Light (3 types)

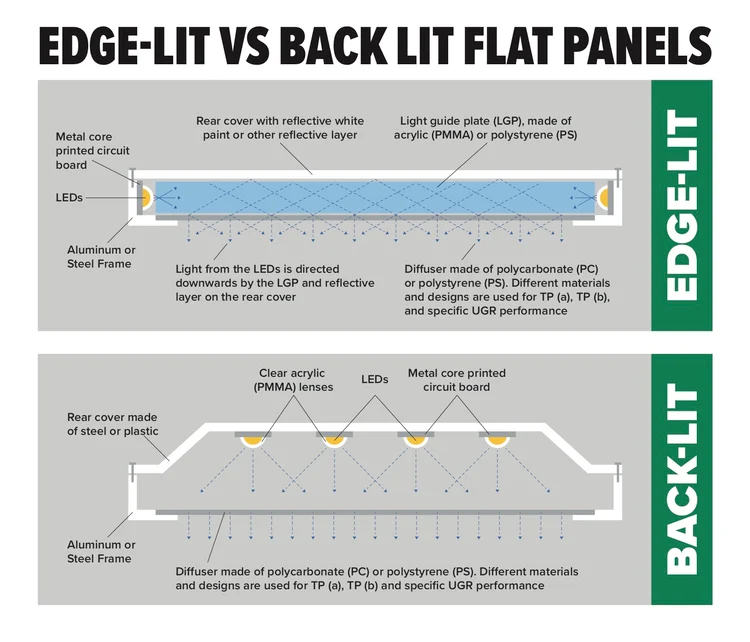

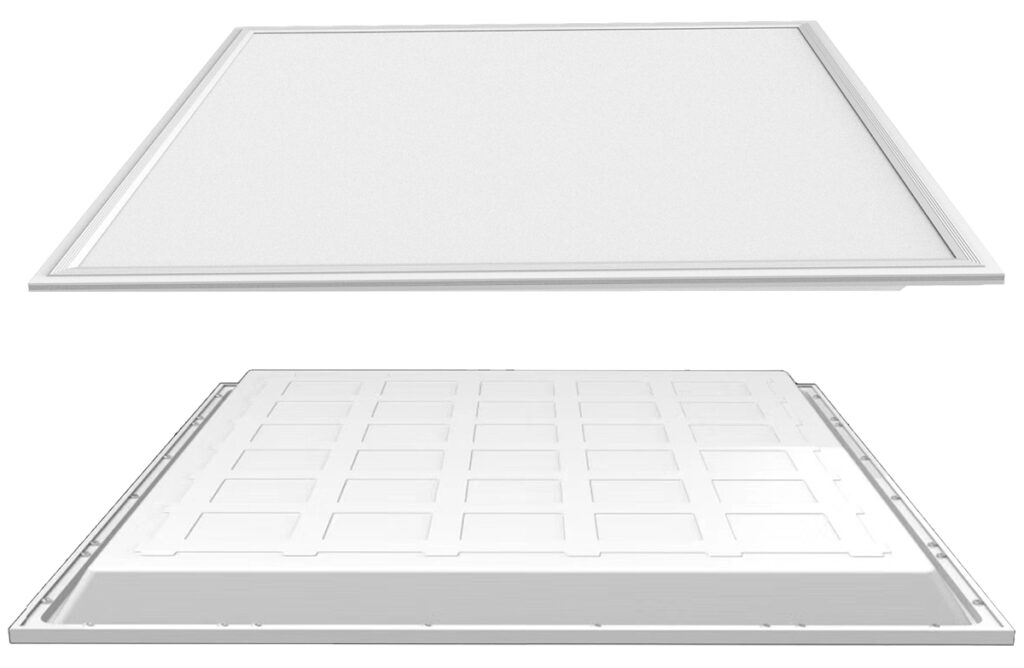

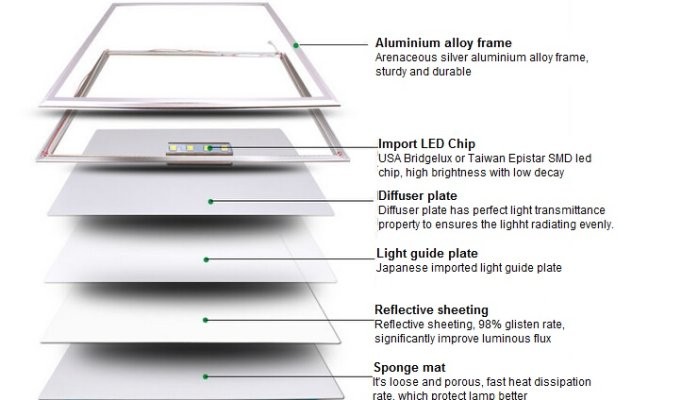

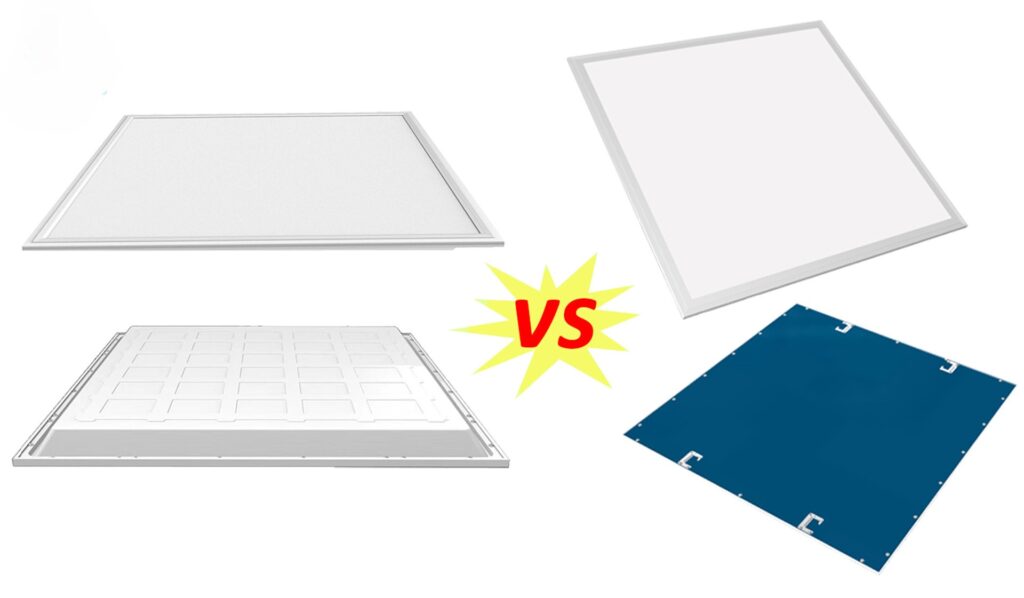

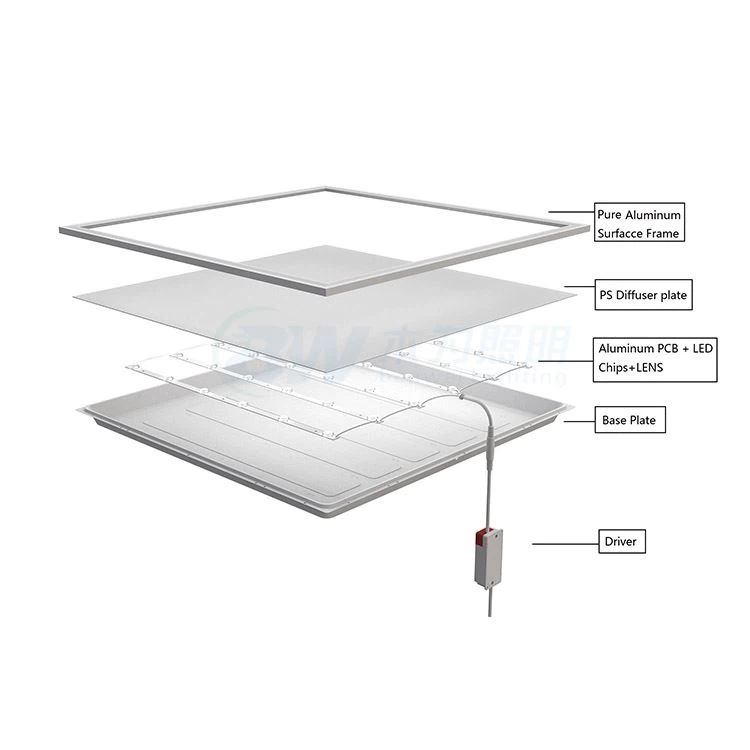

1.1.6.1- (LED Slim Edge-lit / Box-Backlit – Conceal Type)



Technical Specification



Name of Products	LED 2by2 Panel Light (Slim-Edgelit, Box-Backlit) – Conceal Type
Model No.	ALL
Power	36W/40W/48W
Size	600 x 600mm
Color	Daylight/Cool day White/Warm White
Color temperature	6000/6500K/3000K
Voltage	85~265V
Frequency	50Hz
Temperature	-25º c to 45º c
Chips name	SMD (Epistar-Taiwan)
Luminance efficiency	100-110 lm/W
Life times	40,000hrs
CRI	>80
Power factor	0.95
Chips efficiency	90%, ±5%
View angle	160 Degree
Body	Al+LGP
Driver system	SMPS
Warranty	2 Years Warranty
Certificates	CE, ROHS

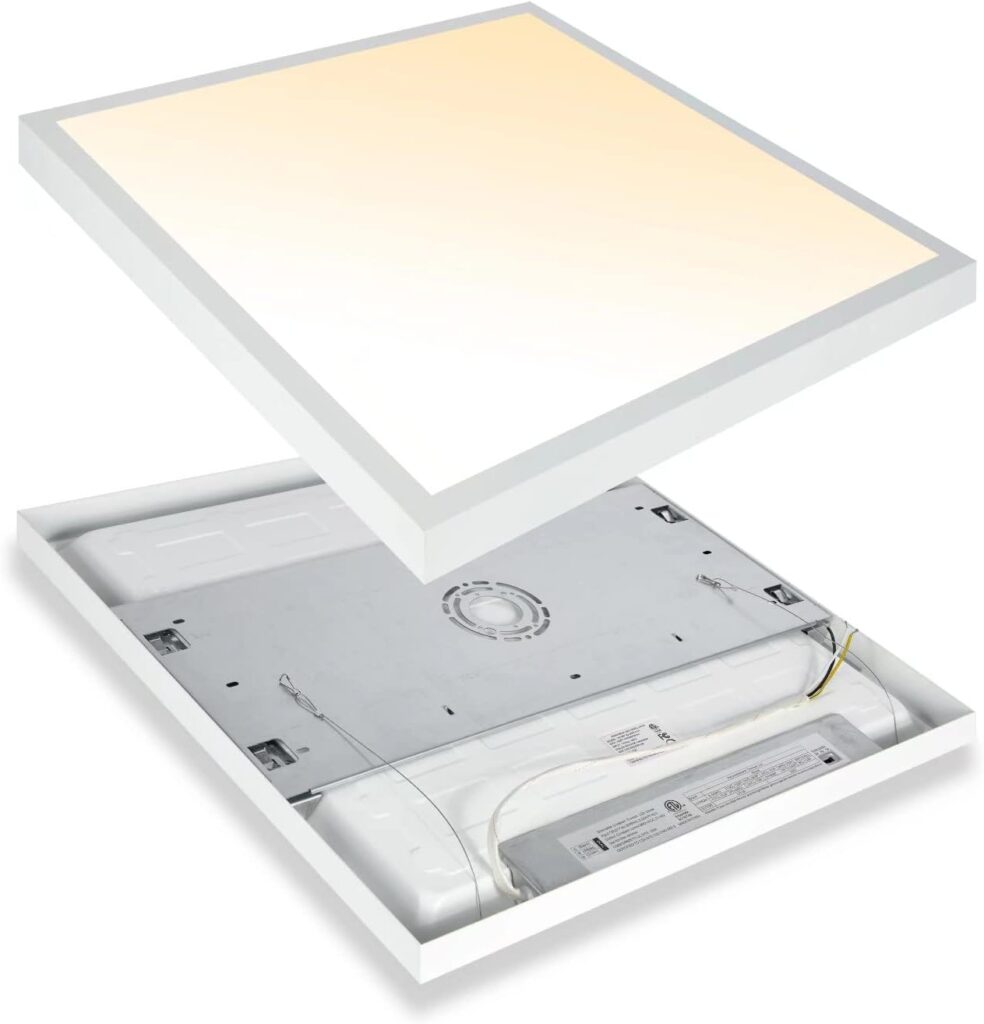

1.1.6.2- LED 2by2 Panel Light (Surface Type)

Technical Specification



Name of Products	LED 2by2 Panel Light , (Surface Type)
Model No.	ALL
Power	40W/48W/56W
Color	Daylight/Cool day White/Warm White
Color temperature	6000/6500K/3000K
Voltage	85~265V
Frequency	50Hz
Temperature	-25º c to 45º c
Chips name	SMD (Epistar-Taiwan/ Sanan -PRC)
Luminance efficiency	100-110 lm/W
Life times	40,000hrs
CRI	>80
Power factor	0.95
Chips efficiency	90%, ±5%
View angle	120 Degree
Body	Al+LGP
Driver system	SMPS
Warranty	2 Years Warranty
Certificates	CE, ROHS

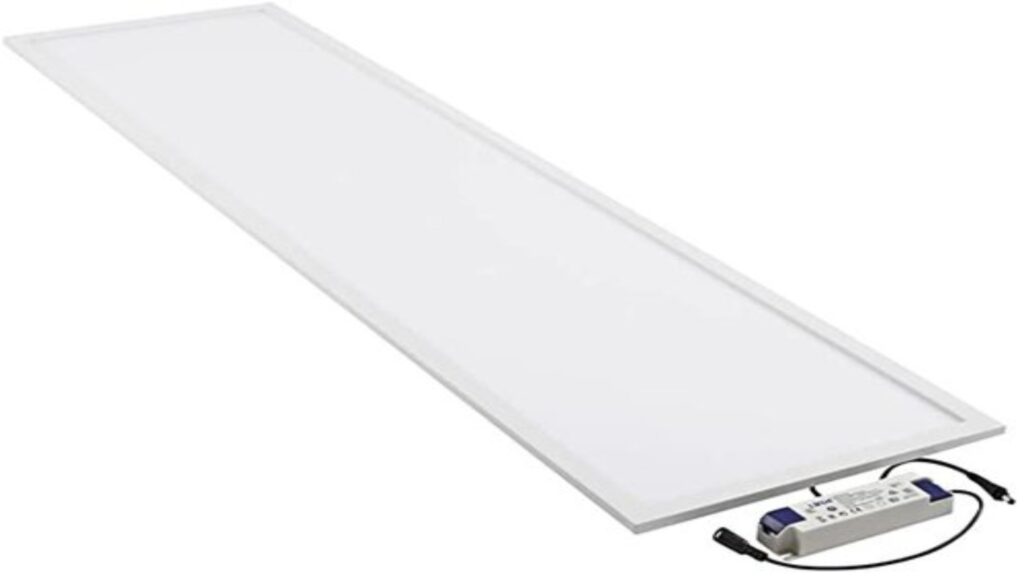

1.1.6.3- LED 4 by 1 Panel Light



Technical Specification



Name of Products	LED 4 by 1 Panel Light (Slim and Box)
Model No.	ALL
Power	48W/56W/60W
Color	Daylight/Cool day White/Warm White
Color temperature	6000/6500K/3000K
Voltage	85~265V
Frequency	50Hz
Temperature	-25º c to 45º c
Chips name	SMD (Epistar-Taiwan/ Sanan -PRC)
Luminance efficiency	100-110 lm/W
Life times	40,000hrs
CRI	>80
Power factor	0.95
Chips efficiency	90%, ±5%
View angle	120 Degree
Body	Al+LGP
Driver system	SMPS
Warranty	2 Years Warranty
Certificates	CE, ROHS
