1.3.3) LED Explosion Proof Light (Various Models)

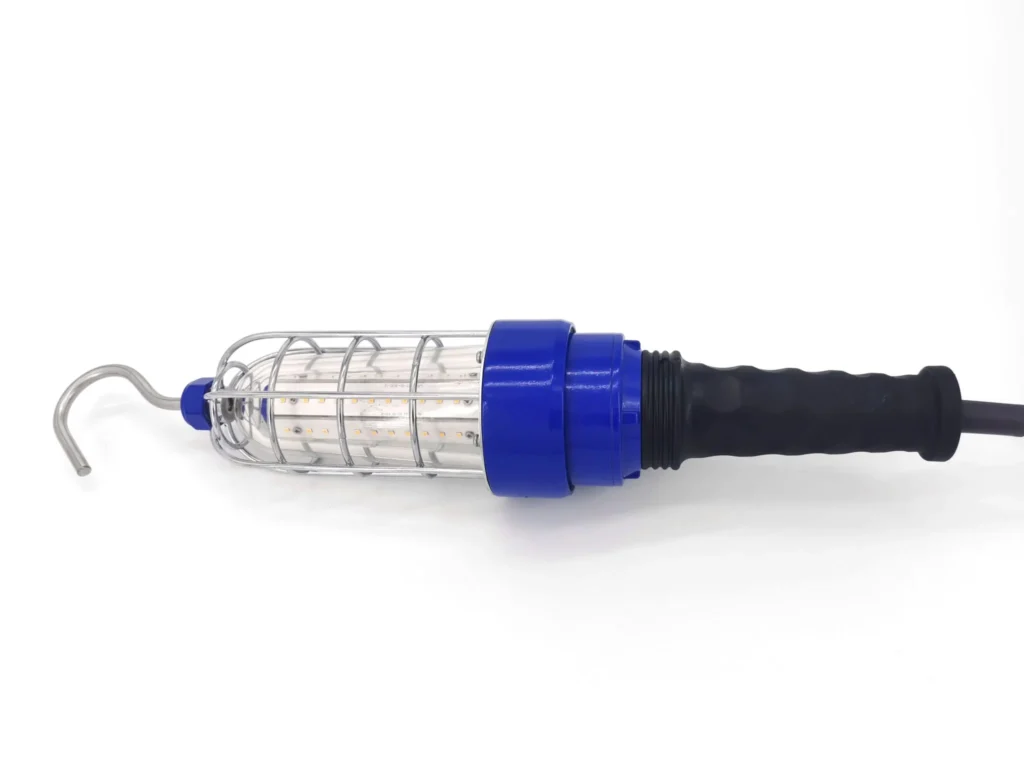

1.3.3.A) Portable Explosion Proof Light
1.3.3.B) LED Explosion Proof Lights 002
1.3.3.C) LED Explosion Proof Lights 003
1.3.3.D) LED Explosion Proof Lights 006
1.3.3.E) LED Explosion Proof Lights 007
1.3.3.F) LED Explosion Proof Lights EP
1.3.3.G) LED Explosion Proof Lights EX
1.3.3.H) LED Explosion Proof Lights LN
1.3.3.A) Portable Explosion Proof Light
Specifications
| Model | CS |
| Watts(W) | 10W/20W/30W |
| CCT(K) | 3000-6500K |
| Beam Angle | 180°/360° |
| CRI | >70 |
| Operating temperature | -40℃ ~55℃ |
| Power Factor | >0.95 |
| THD | <10% |
| Input Voltage | 100-277VAC |
| Frequency | 50-60Hz |
| Lighting Efficiency | 120-140lm/w |
| Warranty | 3/5 Years |
1.3.3.B) LED Explosion Proof Lights 002
Specifications
Model 002
Watts(W) 50W 70W 100W 120W 150W 200W 300W 400W
Executive standard GB3836.1 、 GB3836.2 、GB3836.3、B12476.1、GB12476.5
CCT(K) 3000-6500K
Insulation class Class I
CRI >75
Operating temperature -40℃ ~55℃
Power Factor 0.92-0.98
Input Voltage AC220V
Frequency 50-60Hz
Lighting Efficiency 100-130lm/w
Explosion proof grade Ex de llC T6Gb
Inlet port specifications G3/4
Corrosion protection grade WF2
Warranty 3/5 Years
1.3.3.C) LED Explosion Proof Lights 003
Specifications
Model 003
Watts(W) 50W 70W 100W 120W 150W 200W
Executive standard GB3836.1 、 GB3836.2 、GB3836.3、B12476.1、GB12476.5
CCT(K) 3000-6500K
Insulation class Class I
CRI >75
Operating temperature -40℃ ~55℃
Power Factor 0.92-0.98
Input Voltage AC220V
Frequency 50-60Hz
Lighting Efficiency 100-130lm/w
Explosion proof grade Ex de llC T6Gb
Inlet port specifications G3/4
Corrosion protection grade WF2
Warranty 3/5 Years
1.3.3.D) LED Explosion Proof Lights 006
Specifications
Model 006
Watts(W) 50W 70W 100W 120W 150W 200W 300W 500W
Executive standard GB3836.1 、 GB3836.2 、GB3836.3、B12476.1、GB12476.5
CCT(K) 3000-6500K
Insulation class Class I
CRI >75
Operating temperature -40℃ ~55℃
Power Factor 0.92-0.98
Input Voltage AC220V
Frequency 50-60Hz
Lighting Efficiency 100-130lm/w
Explosion proof grade Ex de llC T6Gb
Inlet port specifications G3/4
Corrosion protection grade WF2
Warranty 3/5 Years
1.3.3.E) LED Explosion Proof Lights 007
Specifications
Model 007
Watts(W) 50W 70W 100W 120W 150W 200W 350W 400W
Executive standard Q/LT0521-2022
CCT(K) 3000-6500K
Insulation class Class I
CRI >75
Operating temperature -40℃ ~55℃
Power Factor 0.92-0.98
Input Voltage AC220V
Frequency 50-60Hz
Lighting Efficiency 100-130lm/w
Inlet port specifications G3/4
Corrosion protection grade WF1
Warranty 3/5 Years
1.3.3.F) LED Explosion Proof Lights EP
Specifications
Model EP
Watts(W) 30W 40W 60W 80W 100W 120W 150W 185W 200W
Executive standard Q/LT0521-2022
CCT(K) 3000-6500K
CRI >70
Operating temperature -40℃ ~55℃
Power Factor 0.92-0.98
Input Voltage AC220V
Frequency 50-60Hz
Lighting Efficiency 100-130lm/w
Inlet port specifications G3/4
Corrosion protection grade WF1
Warranty 3/5 Years
1.3.3.G) LED Explosion Proof Lights EX
Specifications
Model EX
Watts(W) 20W 30W 40W 50W 60W 70W 80W 100W
CCT(K) 3000-6500K
Beam Angle 120drgree
CRI >70
Operating temperature -40℃ ~55℃
Power Factor >0.95
Input Voltage 100-277VAC
Frequency 50-60Hz
Lighting Efficiency 120-140lm/w
Warranty 3/5 Years
1.3.3.H) LED Explosion Proof Lights LN
Specifications
Model LN
Watts(W) 50W 60W 80W 100W 120W 150W 185W 200W 240W
CCT(K) 3000-6500K
Beam Angle 120°
CRI >70
Operating temperature -40℃ ~55℃
Power Factor >0.95
THD <10%
Input Voltage 100-277VAC
Frequency 50-60Hz
Lighting Efficiency 130-150lm/w
Warranty 3/5 Years
