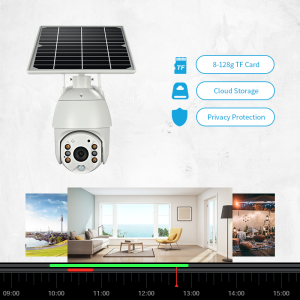

Solar PTZ CCTV Camera Q6
Specifications
Model Q6
Function Wifi 4G
Frequency 2.4Gwifi Support full spectrum 4G networks in the us, Europe and China
Distribution network Qr code scanning+Wi-Fi Quick link Qr code scanning
SIM card Not Supported Nano SIM
Protocol TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P
Main Domain Controller Ingenic T31Z low power wi-fi chip
Image Sensor 300W CMOS sensor SC2335 1/2.8
Mobile detection PIR+motion detection+humanoid detection multiple intelligent detection, effective distance 10-15 meters
Night vision distance Effective lighting distance is about 15-30 meters
Camera lens 3MP Yutong HD lens 3.6MM F=2.8 Horizontal FOV 120 degrees
Battery 4*18650 lithium battery, 12800mAh
Solar Panel 5V, 10W, mono-crystalline
Memorizer Support TF Card 4GB-128GB and cloud storage
ANGLE Horizontal: 355° Vertical: 90°
Playback Event list playback and cloud storage playback
Grade of waterproof IP66
Wake up/sleep time 15s do not sleep
Temperature ‘-30℃ ~+60℃
Humidity ≤80%RH
Warranty 1/2/3 Years
Solar PTZ CCTV Camera Q9
The “Solar PTZ CCTV Camera Q9” seamlessly combines advanced surveillance technology with eco-friendly solar power, making it an ideal security solution for both residential and commercial properties. This camera supports 4G/WiFi connectivity and boasts H.264/H.265 video encoding, ensuring high-quality footage. With its built-in gimbal capable of 265-degree horizontal and 90-degree vertical rotation, it offers comprehensive area coverage. The camera supports up to 128GB TF card storage and features a two-way voice intercom with a built-in speaker and microphone. Powered by a 20Ah battery and a 50W solar panel, the Q9 operates efficiently, maintaining consistent performance with minimal power consumption. It provides crystal-clear HD video resolution, and its intelligent infrared technology adapts to varying lighting conditions. Designed with robust security features including lightning protection and comprehensive network security, the Solar PTZ CCTV Camera Q9 is a reliable, sustainable, and cost-effective choice for modern surveillance needs, backed by a solid 1/2/3 year warranty.
Specifications
Model Q9
Function Support 4G/WiFi H.264/H.265 video encoding, support dual bit rate, 0.1M-8Mbps
Support ONVIF, can connect to NVR host Built-in gimbal, horizontal 265 degrees, vertical 90 degrees, supports 8 preset points
Maximum support 128G TF card storage Support two-way voice intercom; built-in speaker
Support all network environments at home and abroad;
Network Type GSM/GPRS/EDGE/&CDMA2000,1X/1xAdvance/1XEv-DOrA&WCDMA
Operating system Windows XP/Windows vista/Windows7/Windows8/8.1/Mac OS X10.7+
USIM/SIM Micro SIM Video Resolution HD:1080p/25fps HD：960P/30fps ,25fps
Power adapter DC12/2A Working temperature -10℃～+50℃
Power consumption ≤20W Rotate range Pan：265º Tilt：90 º
Pan/Tilt Rotate speed 0-30°/s Lightning protection Instant 6000V
Network security HTTPS，802.1X、IP ADDRESS FILTERING Alarm interface Support
Video compression AMR/G.711A Two ways audio Support
Audio input 1 built-in-38dB microphone Audio output Built-in speaker (8Ω1W)
Battery capacity 20Ah Solar panel power 18V, 50W
Automatic control of infrared light Intelligent matching focal length PWM dimming technology
Power dissipation About 5W during the day, about 8W for infrared startup at night
Warranty 1/2/3 Years
