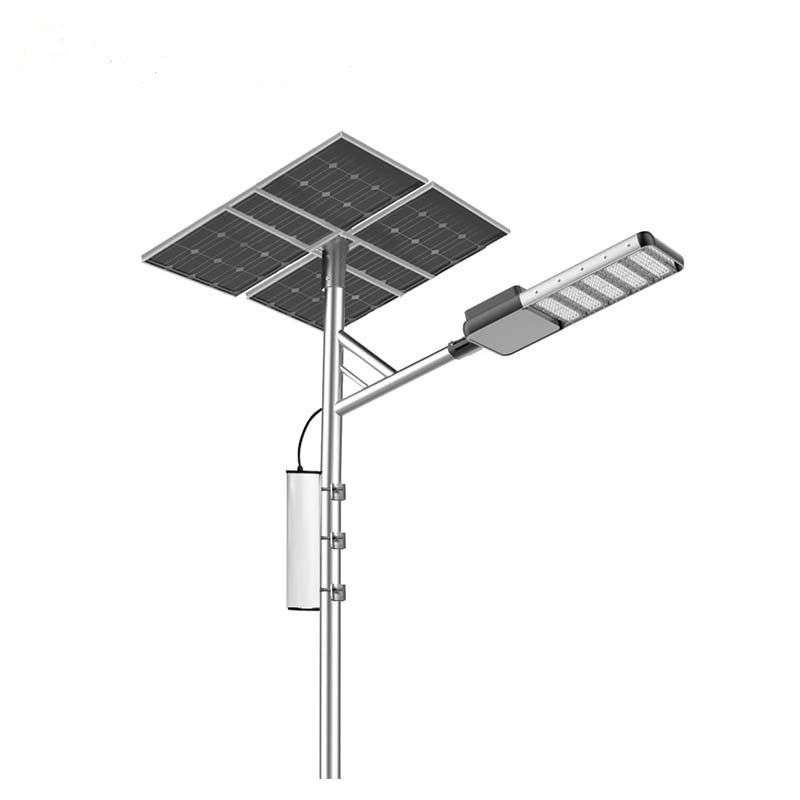

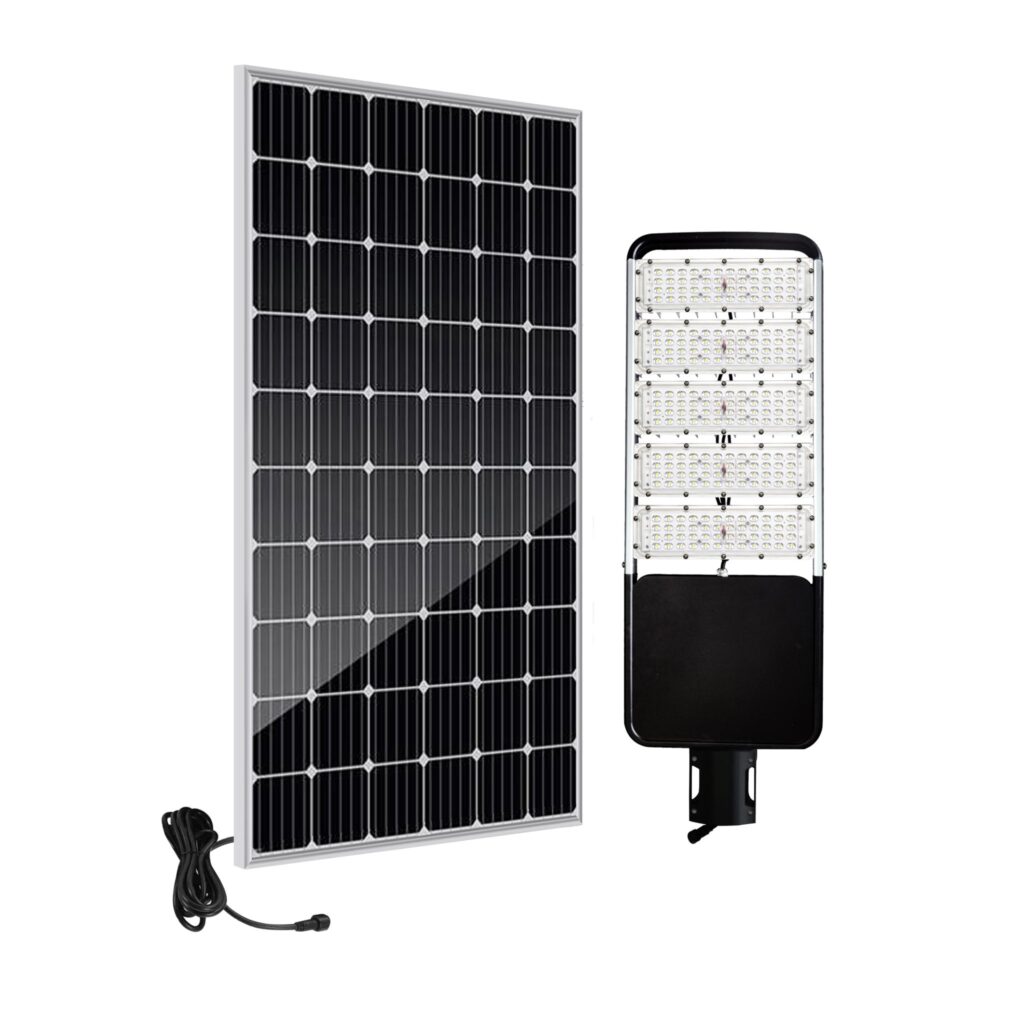

All In Two Solar Street Light Series- ZC

Specifications

Model                 ZC

Watts(w)            30W      40W      50W      60W      80W      100W    120W

Lumens(Lumens)            3000-4000LM    4000-500LM      5000-6000LM              6000-7000LM    8000-9000LM    10000-12000LM              13000-15000LM

Battery 12.8V 18AH        12.8V 24AH        12.8V 30AH        12.8V 36AH              12.8V 42AH        12.8V 54AH        12.8V 60AH

Solar Panel         18V 40W            18V 50W            18V 65W            18V 80W              18V 100W          18V 120W          18V 170W

LED Chip             3030, 96PCS       3030, 96PCS       3030, 144PCS     3030, 144PCS 3030, 192PCS     3030, 240PCS     3030, 240PCS

CCT(K)  2700-6500K

CRI        >70

Lighting Efficiency           170-180lm/w

Rainy Days         12-15hours, 3-5 cloudy/ rainy days

Work Temperature          -25℃－+65℃

Work Mode       Auto ON/OFF, Time Dimming, Motion Sensor

Material              Die casting aluminum

Controller           MPPT&PWM

Battery Power Indicators              100%-75%-50%-25%

Install Pole diameter      60-65mm

IP Rating/IK Class            IP66/IK09

Mounting Height(Recommend)  4-5m     5-6m     6-8m     6-8m     8-9m     9-11m      10-12m

Space between poles(Recommend)        15-20m 20-25m 20-25m 20-25m 25-30m      30-35m 35-40m

Warranty            2/3/5 Years
