Lightning Protection System (LPS)

Lightning Protection System (LPS)

Nouran Consortium Bangladesh (NCB) provides SITC of LPS system all over the Country.

We are involved in Design, Supply, Installation Testing & Commissioning works of LPS both ESEAT & as per NFPA 780 (as per BNBC & RSC)

Major parts of LPS (ESEAT):

  • OPR 30/45/60 Air Terminal (Brand: ABB)
  • Strike Counter (Brand: ABB)
  • Protective Box/Earthing Test Box for Counter
  • 5m Mast for Air Terminal (modify tower as per site condition)
  • Copper Strip/Cable (Bare cable or Insulated Cable)
  • 2 Nos. Earthing for each system

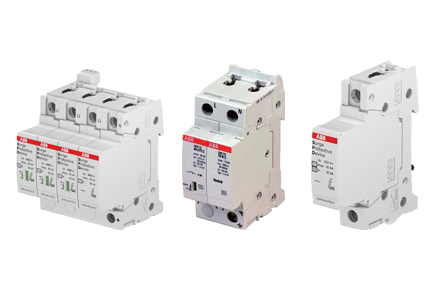

  • 1 No. 80kA SPD Type I+II for MDB in each Building

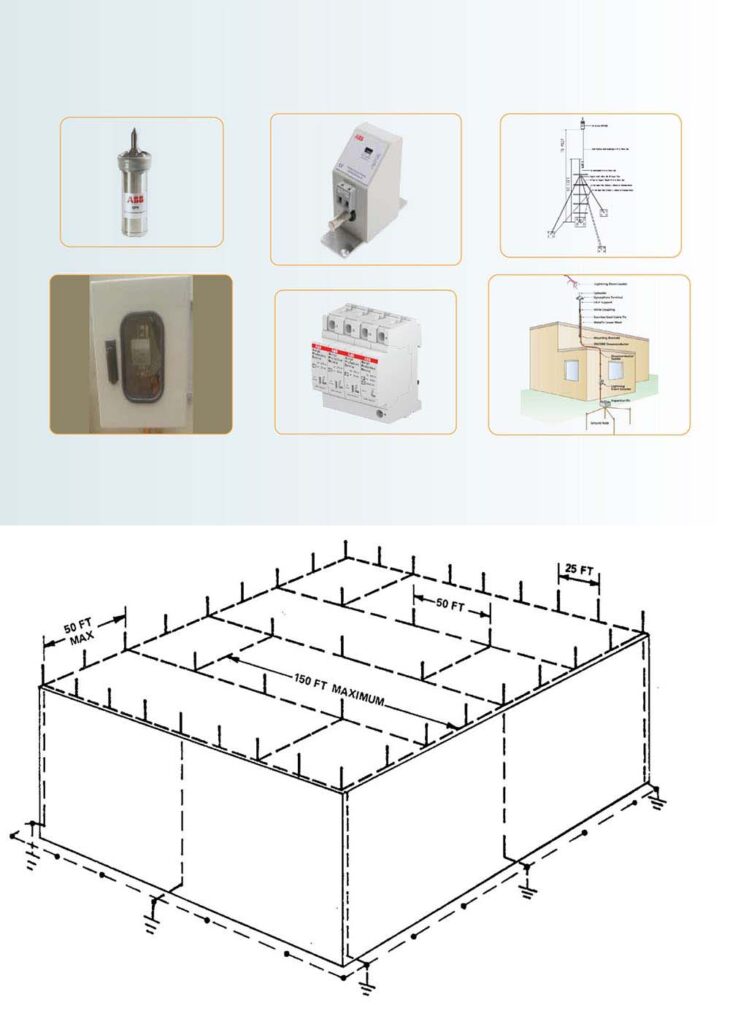

Major parts of LPS (As per NFPA 780):

  • Air Terminal (Class I & II)
  • Running & Down Conductor (Class I & II)
  • Earthing Test Point Link Box

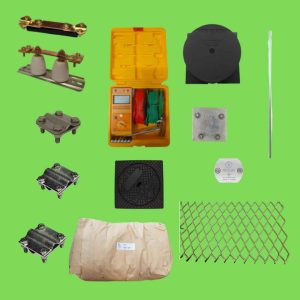

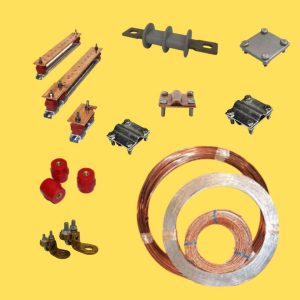

  • Accessories (i.e. Saddle, Jointer, Nut-Bolt, SS Screw, Royal Bolt, Royal Plug etc. Earthing System (As per Project Size).



Our Brands:

ABB (Major), LPI (Optional), LPS (Optional).







Products Sample Picture

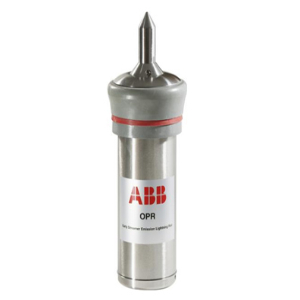

ABB OPR 30

Include:

  1. 1 PCS OPR 60
    2. 1 PCS Counter
    3. 1 PCS SPD

General Information:
Extended Product Type:OPR 45 ABB
Product ID:2CTB899800R7500
EAN:3660308524706
Catalog Description:OPR 45 ABB
Long Description:B751470

Dimensions
Product Net Width:7.4 cm
Product Net Height:17 cm
Product Net Weight:2.1 kg
Container Information
Package Level 1 Units:1 piece
Package Level 1 Width:82 mm
Package Level 1 Height:80 mm
Package Level 1 Depth / Length:334 mm
Package Level 1 EAN:3660308524706

Additional Information
Battery Type: Industrial
Brand / Label:ABB
Options Provided: ESEAT OPR
Product Main Type: ESEAT
Product Name: Lightning Protection Devices
Suitable For: To protect the systems against transient overvoltage (lightning) we provided ABB OPR 30 Price in Bangladesh .

Certificates and Declarations (Document Number)
Data Sheet, Technical Information:2CTC435056D1701
UL Certificate:2CTC437025G1701

Classifications
ETIM 4:EC000505 – Air-termination equipment for lightning protection
ETIM 5:EC000505 – Air-termination equipment for lightning protection
Object Classification Code:142JZC
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)



ABB OPR 45

Include:

1 PCS OPR 60
2. 1 PCS Counter
3. 1 PCS SPD

General Information

Extended Product Type: OPR 45 ABB
Product ID:2CTB899800R7500
EAN:3660308524706
Catalog Description: OPR 45 ABB
Long Description:B751470

Dimension:

Product Net Width:7.4 cm
Product Net Height:17 cm
Product Net Weight:2.1 kg
Container Information
Package Level 1 Units:1 piece
Package Level 1 Width:82 mm
Package Level 1 Height:80 mm
Package Level 1 Depth / Length:334 mm
Package Level 1 EAN:3660308524706

Additional Information
Battery Type: Industrial
Brand / Label : ABB
Options Provided: ESEAT OPR
Product Main Type: ESEAT
Product Name: Lightning Protection Devices
Suitable For: To protect the systems against transient overvoltage (lightning)

Certificates and Declarations (Document Number)
Data Sheet, Technical Information:2CTC435056D1701
UL Certificate:2CTC437025G1701

Classifications
ETIM 4:EC000505 – Air-termination equipment for lightning protection
ETIM 5:EC000505 – Air-termination equipment for lightning protection
Object Classification Code:142JZC
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)

ABB OPR 60

Include:

  1. 1 PCS OPR 60
    2. 1 PCS Counter
    3. 1 PCS SPD

ABB OPR 60

General Information:

Extended Product Type: OPR 60 ABB
Product ID: 2CTB899800R7100
EAN: 3660308513502
Catalog Description: OPR 60 ABB
Long Description: B751350

Dimensions:

Product Net Width:  7.4 cm
Product Net Height:  17 cm
Product Net Depth :  78 mm
Length Product Net Weight:  2.1 kg

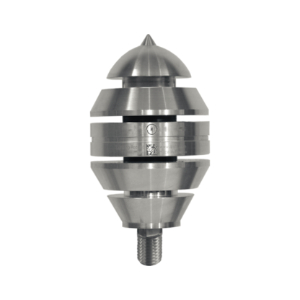

ELLIPS – 1.0  (France)

Include:

  1. 1 PCS ELLIPS 1.0
    2. 1 PCS Counter
    3. 1 PCS SPD



Weight: 1.86 kg
Packaging: 215*215*220 mm
Protection Area: 63-89 m at 5 m

Triggering advance: 10 μs

Ref. 10005/E10

Early Streamer Emitter Lightning Rod

Dimensions: 200×100 mm

Axis: M 20

Color: Natural



Description

The Ellips ® 1.0 Basic Lightning Rod is the result of years of research and experimentation in the laboratory and in the field.

Combining cutting-edge materials and technologies, the Ellips ® 1.0 lightning rod provides protection against direct lightning for all structures or open spaces.

Its aesthetics and colors allow its integration into all lightning protection system projects (8 colors available – without impact on operation).

Our range of Ellips ® lightning rods and their accessories are manufactured exclusively in France in our workshops. Wired tester available with the specific accessory for Test@ir ®. Compliance with NFC 17-102:2011, UNE 21186, IEC standards 62305 and equivalent country standards.

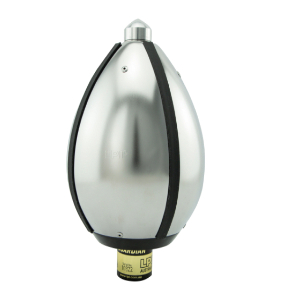

LPI (CATII) Australia

Include:

1 PCS LPI CATII
2. 1 PCS Counter
3. 1 PCS SPD

Description

Lightning Protection International Pty Ltd (LPI) is a fully Australian owned manufacturer and supplier of direct strike lightning protection, surge and transient protection, and earthing / grounding solutions. LPI has provided specialist lightning protection advice to customers for many years in some of the most lightning-prone areas of the world. LPI personnel have extensive experience in risk management, system design, training, installation, certification, and commissioning of lightning protection systems in a wide variety of industry groups.

LPI maintains a third-party Quality Management System to AS/NZS ISO 9001:2015. LPI’s range of products and services are exported from its head office, research, and manufacturing facility in Tasmania, Australia as well as via regional offices worldwide. The company has been recognized within Australia for its outstanding export successes and has been awarded several prestigious export awards.
